Classification: | Reference: | Date: |
BT21-026 | NTB21-108 | November 22, 2021 |
VOLUNTARY SAFETY RECALL CAMPAIGN
2022 FRONTIER; TRAILER TOW HARNESS AND TOW HITCH RECEIVER INSTALL
CAMPAIGN ID #: | PC855 |
APPLIED VEHICLES: | 2022 Frontier (D41) – Crew Cab Long Wheelbase ONLY |
Check Service COMM or Dealer Business Systems (DBS) National Service History to confirm campaign eligibility.
INTRODUCTION
Nissan is conducting this voluntary safety recall campaign, on certain specific model year 2022 Frontier crew cab long wheelbase vehicles, to install a trailer tow harness and tow hitch receiver. This service will be performed at no charge to the customer for parts or labor.
IDENTIFICATION NUMBER
Nissan has assigned identification number PC855 to this campaign. This number must appear on all communication and documentation of any nature dealing with this campaign.
DEALER RESPONSIBILITY
It is the dealer’s responsibility to check Service COMM or Dealer Business Systems (DBS) National Service History for the campaign status on each vehicle falling within the range of this voluntary safety recall which for any reason enters the service department. This includes vehicles purchased from private parties or presented by transient (tourist) owners and vehicles in a dealer’s inventory. Federal law requires that new vehicles in dealer inventory which are the subject of a safety recall must be corrected prior to sale. Failure to do so can result in civil penalties by the National Highway Traffic Safety Administration. While federal law applies only to new vehicles, Nissan strongly encourages dealers to correct any used vehicles in their inventory before they are retailed.
SERVICE PROCEDURE
- Install the trailer tow harness kit.
- For the trailer tow harness kit installation, refer to the accessory installation procedure Trailer Tow Harness Kit_Frontier_T99T8 9BU0A, found under the Install Instructions tab in ASIST.
- Install the tow hitch receiver.
- For the tow hitch receiver installation, refer to the accessory installation procedure Tow Hitch Receiver_Frontier_T99T5 9BU0B, found under the Install Instructions tab in ASIST.
NOTE: In the event the vehicle currently has an aftermarket tow hitch installed, Email a clear picture of the tow hitch assembly that is on the vehicle to FQA using the information below.
a. Email photos to nnafqasupport@nissan-usa.com
b. Make sure to include the following information in the Email:
-
- Email Subject Line: PC855 Frontier Tow Hitch
-
- Dealer Name
-
- Dealer Code
-
- Dealer Address
-
- VIN
-
- Contact Person Name
-
- Contact Person Phone Number
IMPORTANT: The Email file size cannot exceed 10Mb.
FQA will follow-up with the Dealer contact person within two (2) business days with further instructions.
PARTS INFORMATION
DESCRIPTION | PART NUMBER | QUANTITY |
Tow Harness Kit | T99T8-9BU0A | 1 |
Tow Hitch Receiver | T99T5-9BU0B | 1 |
CLAIMS INFORMATION
Submit a “CM” line claim using the following claims coding:
CAMPAIGN (“CM”) ID | DESCRIPTION | OP CODE | FRT |
PC855 | Install Trailer Tow Harness and Tow Hitch Receiver | PC8550 | 1.3 |
AMENDMENT HISTORY
PUBLISHED DATE | REFERENCE | DESCRIPTION |
November 22, 2021 | NTB21-108 | Original bulletin published |
Recall PC855 Missing Tow Hitch Compromises Fuel Tank – 2022 Nissan Frontier
Recall PC855 Missing Tow Hitch Compromises Fuel Tank – 2022 Nissan Frontier
Remedy Instructions and TSB
RCRIT-21V917-5000.pdf 747.715KB

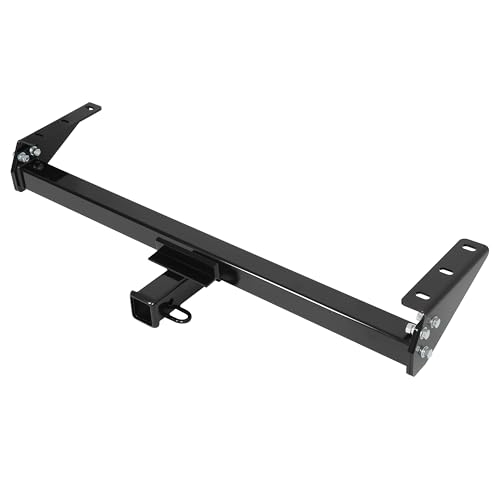

- DEPENDABLE STRENGTH. This trailer hitch is rated for 5,000 lbs. gross trailer weight, 500 lbs. tongue weight, 8,000 lbs. weight distribution capacity and 800 lbs. weight distribution tongue weight (limited to lowest-rated towing component)
